27-Network-Policies

Network Policies

• Take me to Video Tutorials

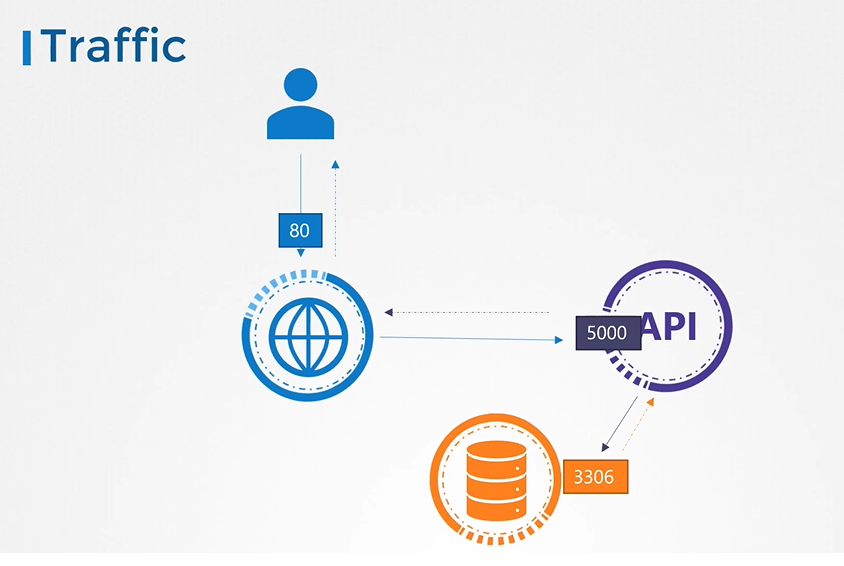

Trafic flowing through a webserver serving frontend to users an app server serving backend API and a database server

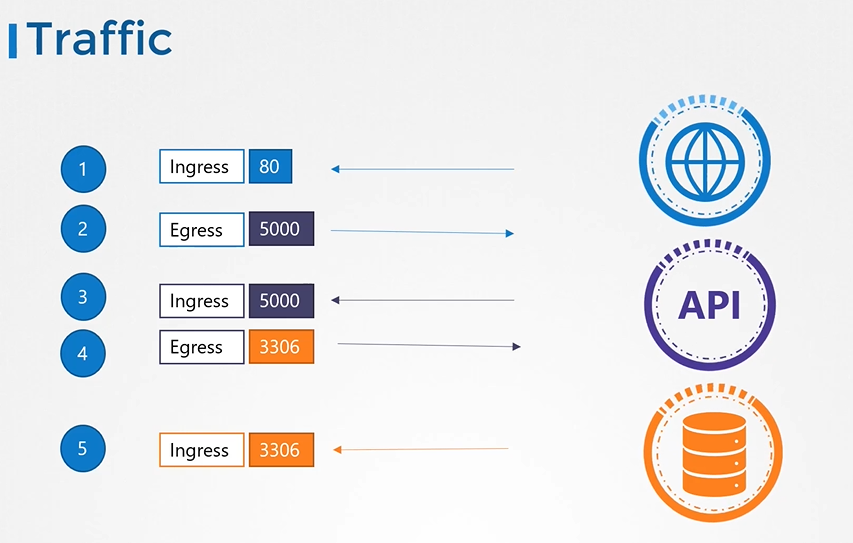

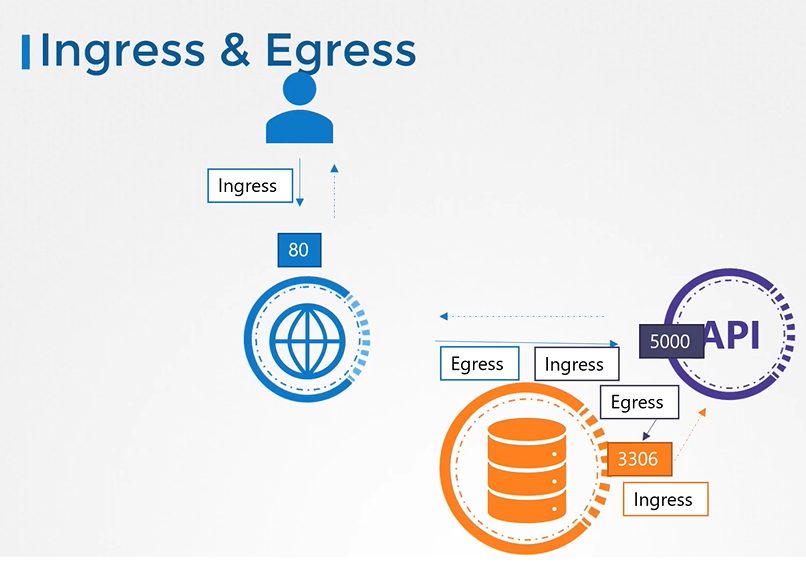

• There are two types of traffic

  • Ingress
  • Egress

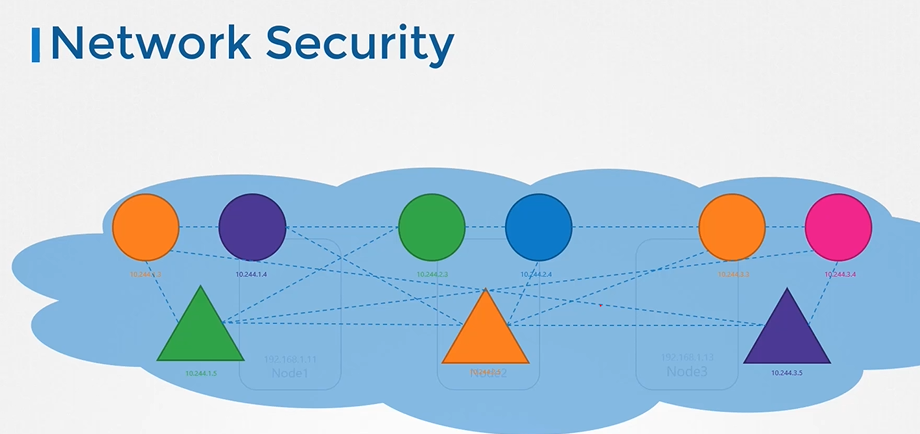

Network Security

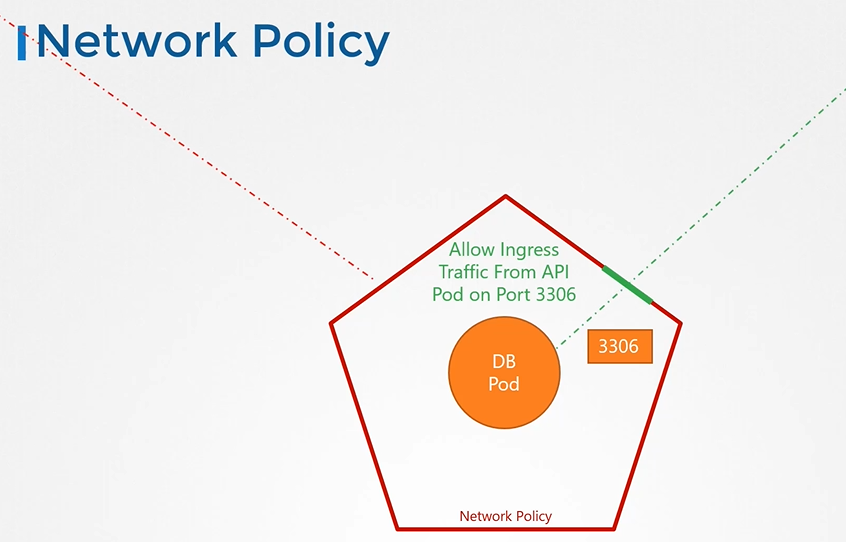

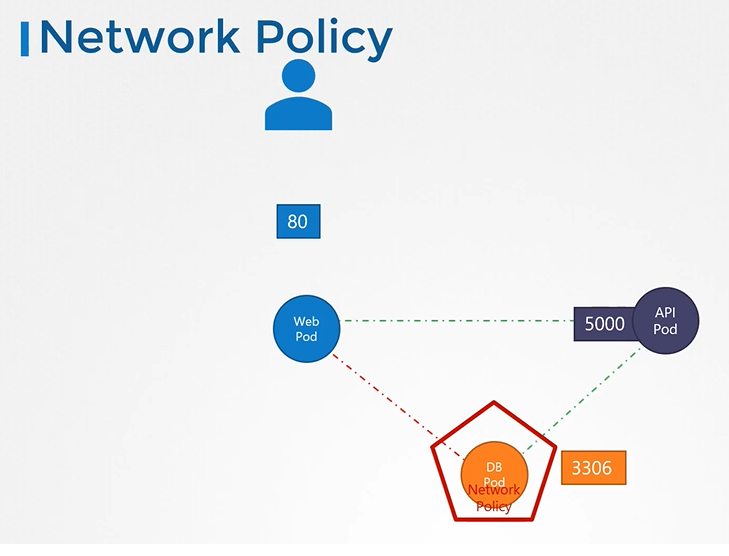

Network Policy

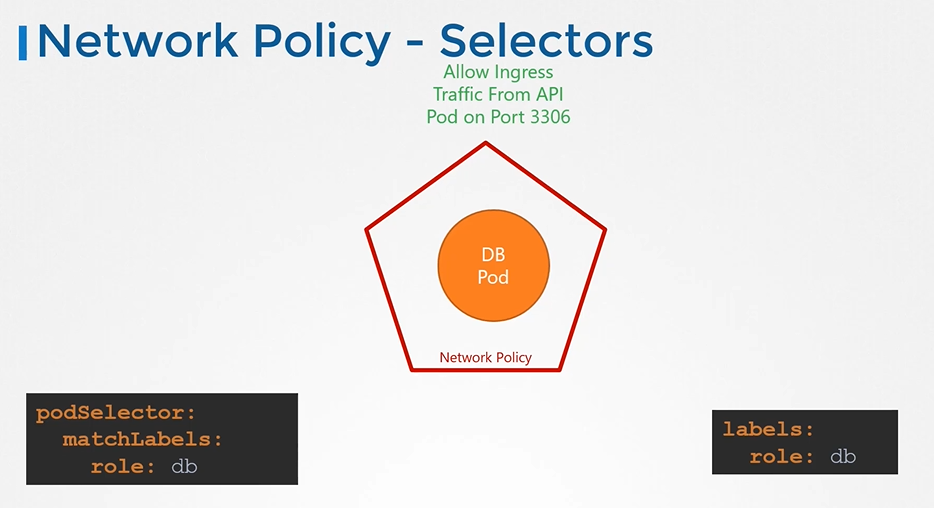

Network Policy Selectors

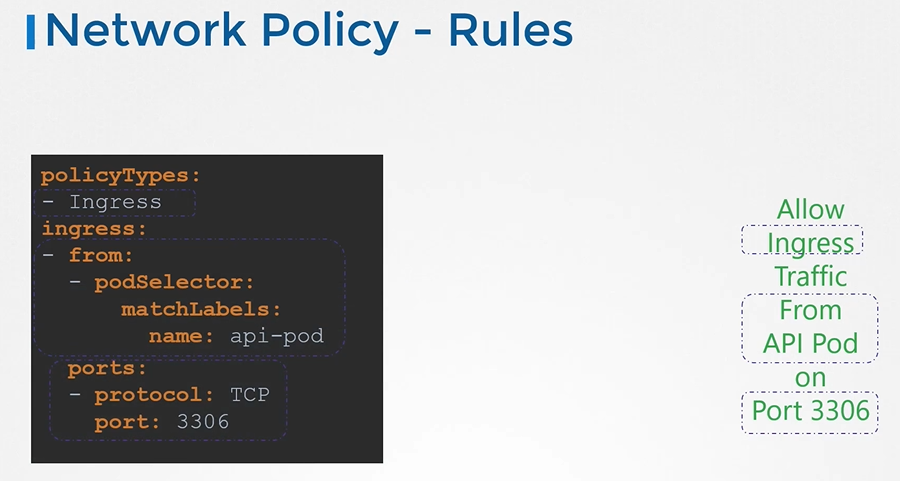

Network Policy Rules

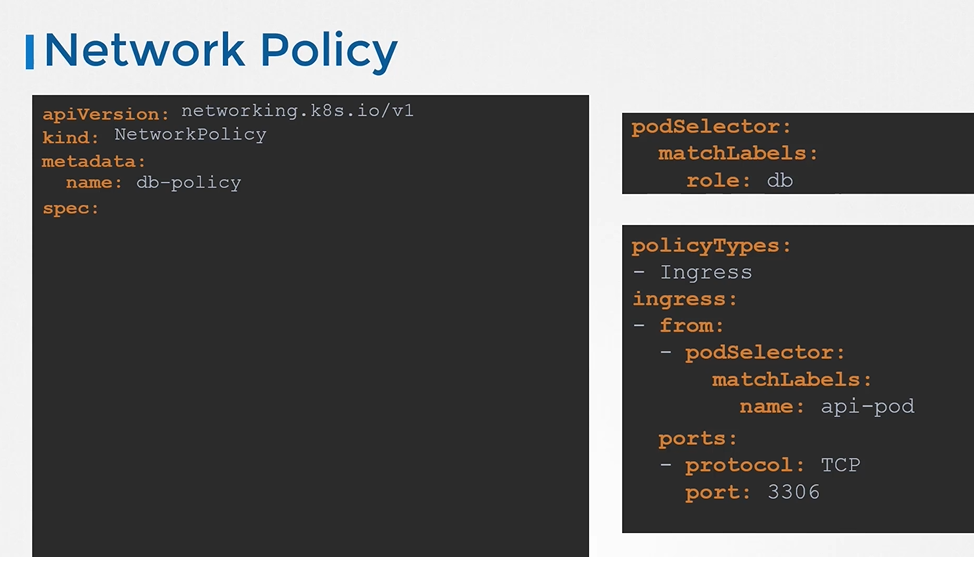

Create network policy

• To create a network policy

  apiVersion: networking.k8s.io/v1
  kind: NetworkPolicy
  metadata:
   name: db-policy
  spec:
    podSelector:
      matchLabels:
        role: db
    policyTypes:
    - Ingress
    ingress:
    - from:
      - podSelector:
          matchLabels:
            role: api-pod
      ports:
      - protocol: TCP
        port: 3306

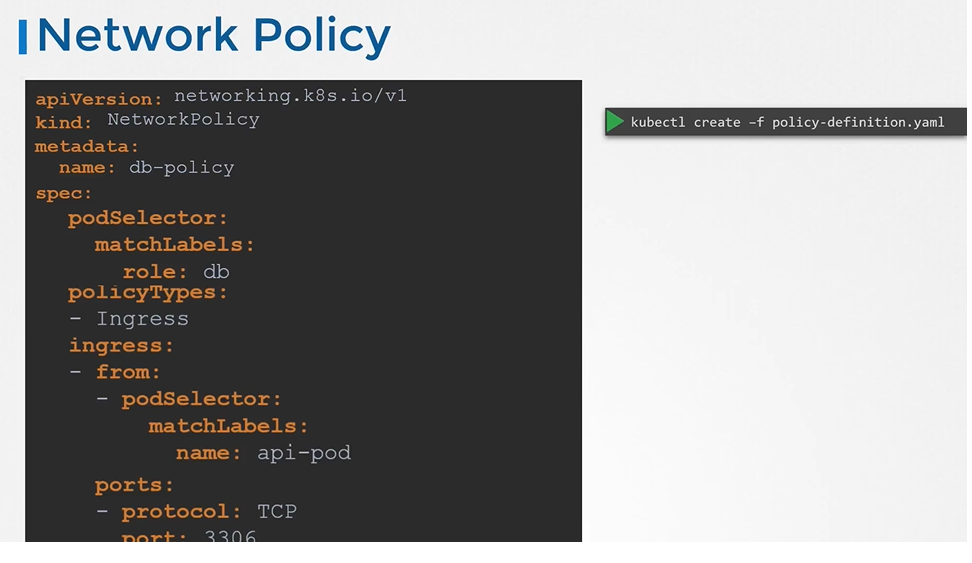

  $ kubectl create -f policy-definition.yaml

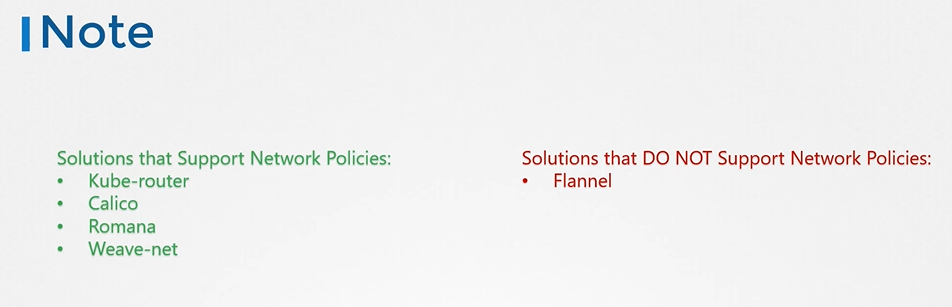

Note

Additional lecture on Developing Networking Policies

K8s Reference Docs

• https://kubernetes.io/docs/concepts/services-networking/network-policies/
• https://kubernetes.io/docs/tasks/administer-cluster/declare-network-policy/
