Monitor Cluster Components

• Take me to Video Tutuorials

In this section, we will take a look at monitoring kubernetes cluster

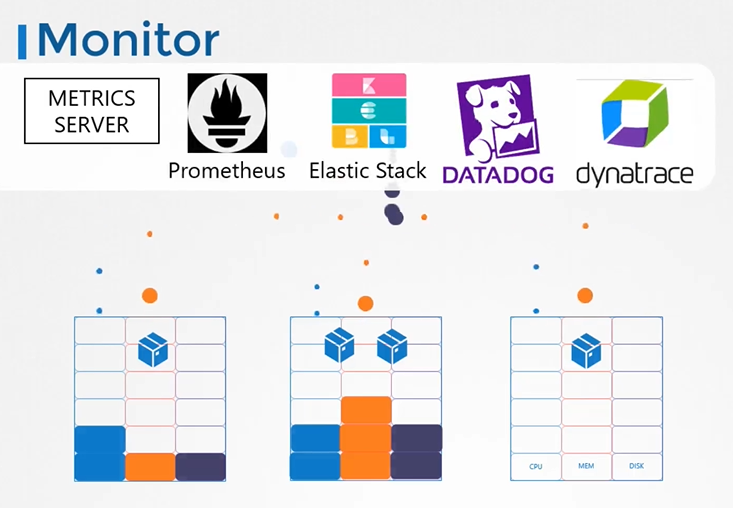

How do you monitor resource consumption in kubernetes? or more importantly, what would you like to monitor?

Heapster vs Metrics Server

• Heapster is now deprecated and a slimmed down version was formed known as the metrics server.

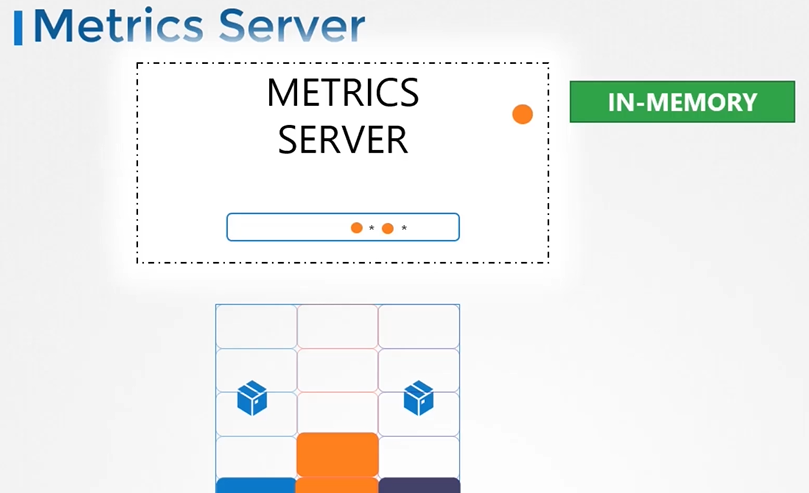

Metrics Server

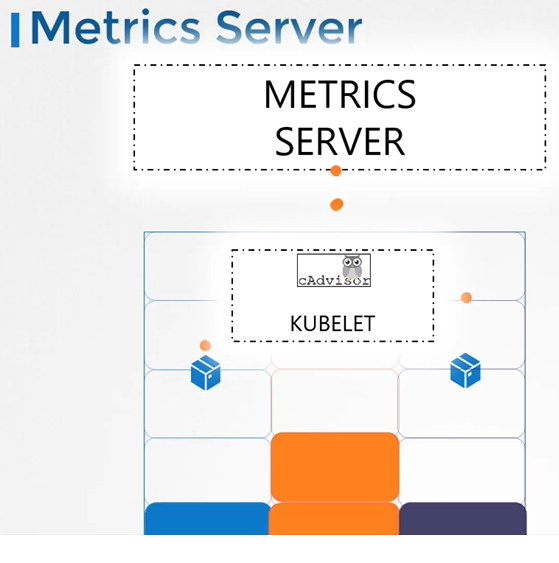

How are the metrics generated for the PODs on these nodes?

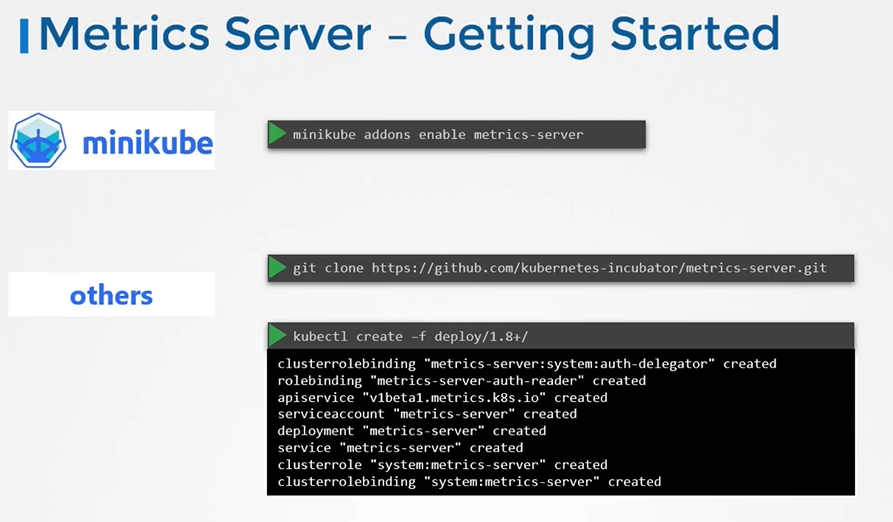

Metrics Server - Getting Started

• Clone the metric server from github repo

  $ git clone https://github.com/kubernetes-incubator/metrics-server.git


• Deploy the metric server

  $ kubectl create -f metric-server/deploy/1.8+/

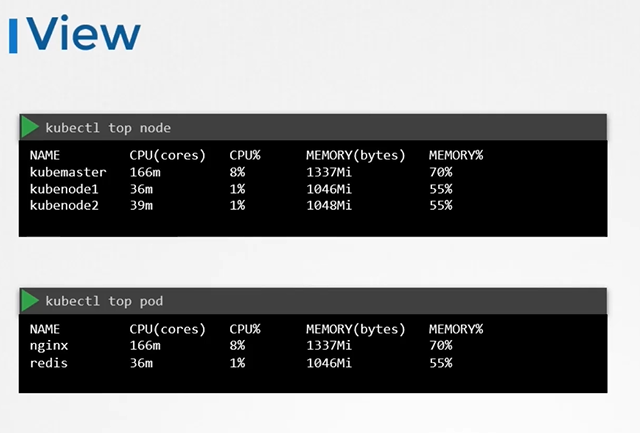

• View the cluster performance

  $ kubectl top node


• View performance metrics of pod

  $ kubectl top pod
