TLS in kubernetes - Certificate Creation

• Take me to Video Tutorial

In this section, we will take a look at TLS certificate creation in kubernetes

Generate Certificates

• There are different tools available such as easyrsa, openssl or cfssl etc. or many others for generating certificates.

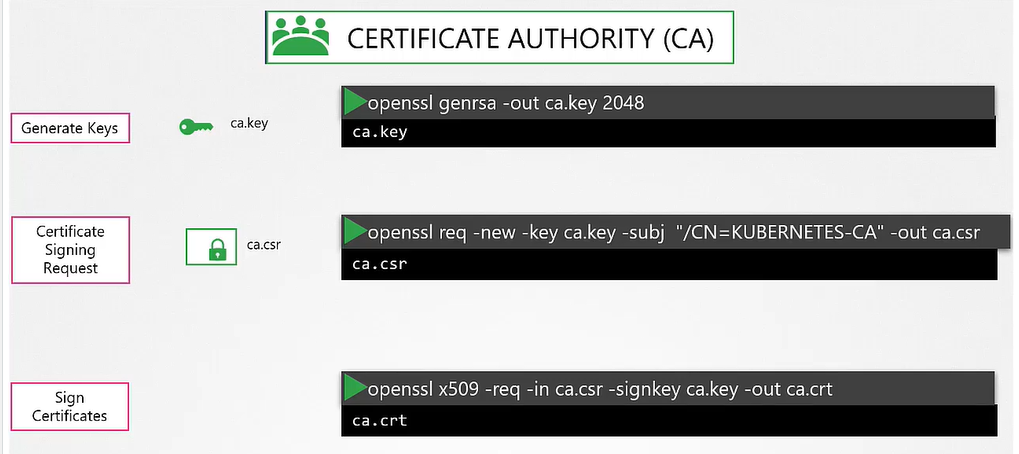

Certificate Authority (CA)

• Generate Keys

  $ openssl genrsa -out ca.key 2048


• Generate CSR

  $ openssl req -new -key ca.key -subj "/CN=KUBERNETES-CA" -out ca.csr


• Sign certificates

  $ openssl x509 -req -in ca.csr -signkey ca.key -out ca.crt

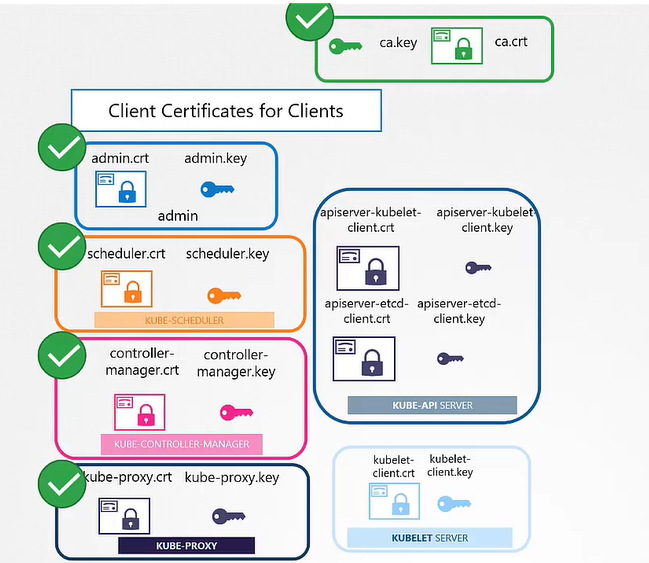

Generating Client Certificates

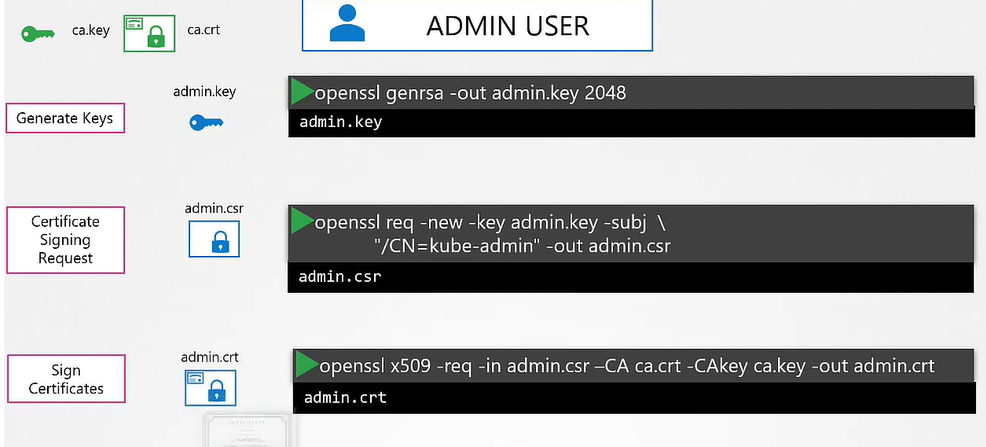

Admin User Certificates

• Generate Keys

  $ openssl genrsa -out admin.key 2048


• Generate CSR

  $ openssl req -new -key admin.key -subj "/CN=kube-admin" -out admin.csr


• Sign certificates

  $ openssl x509 -req -in admin.csr -CA ca.crt -CAkey ca.key -out admin.crt




• Certificate with admin privilages

  $ openssl req -new -key admin.key -subj "/CN=kube-admin/O=system:masters" -out admin.csr

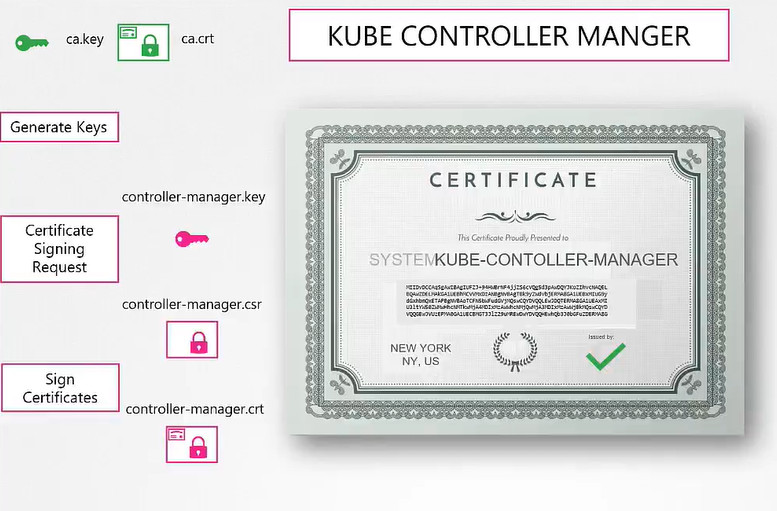

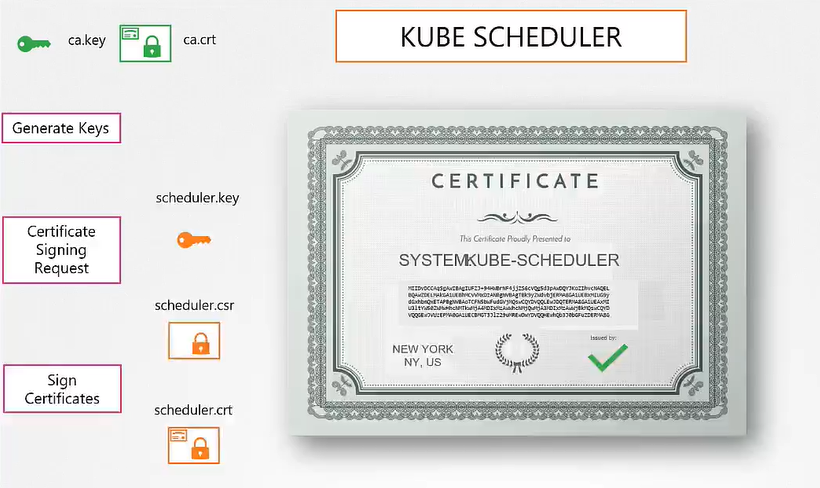

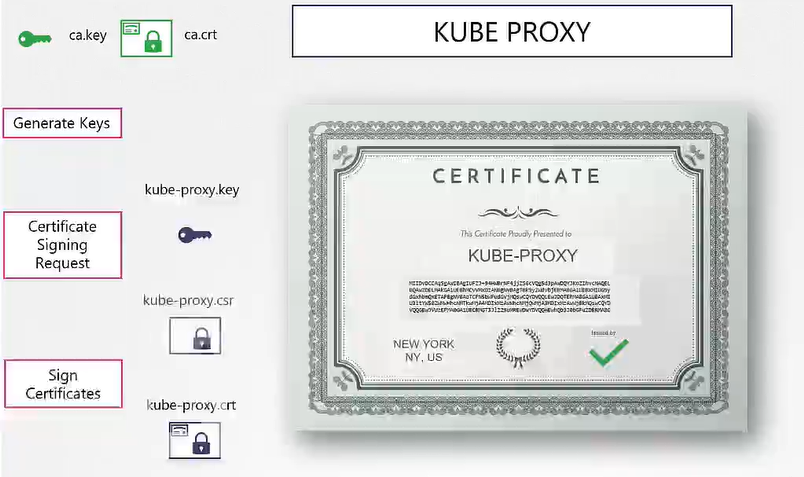

We follow the same procedure to generate client certificate for all other components that access the kube-apiserver.

Generating Server Certificates

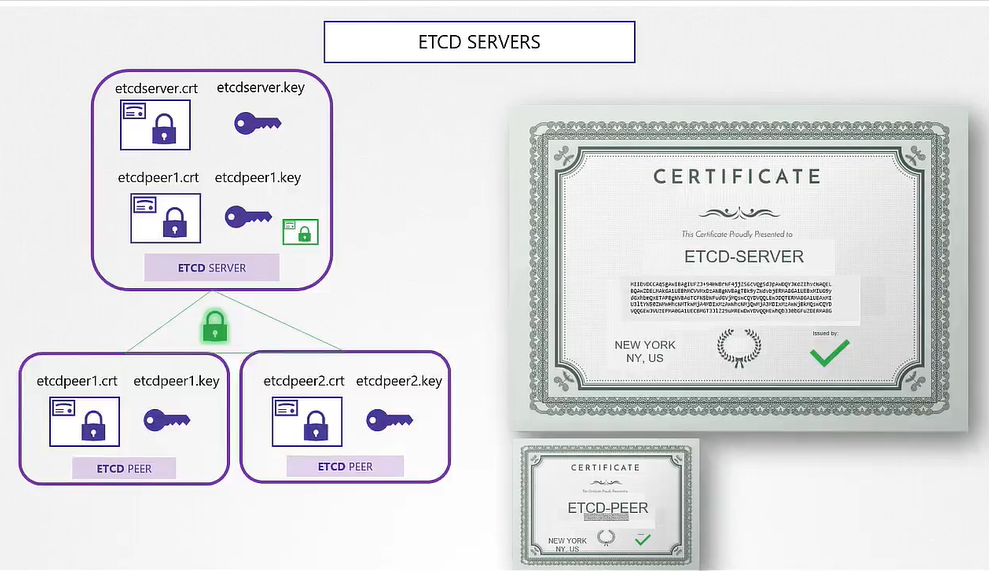

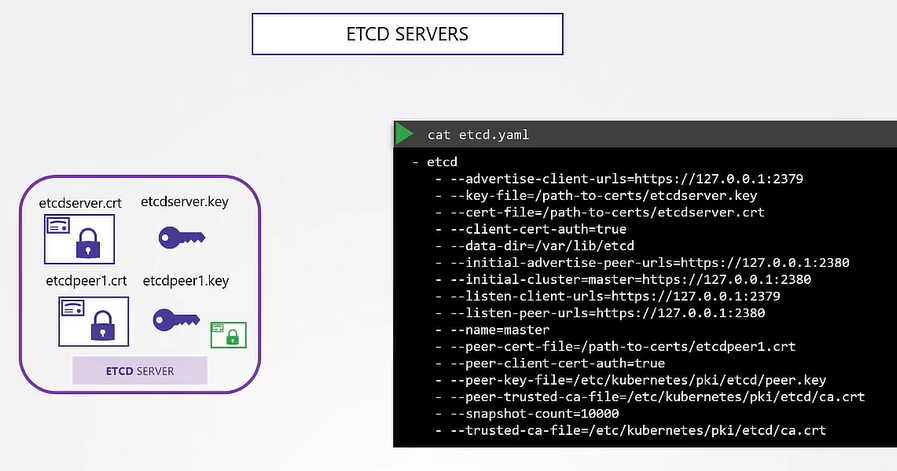

ETCD Server certificate

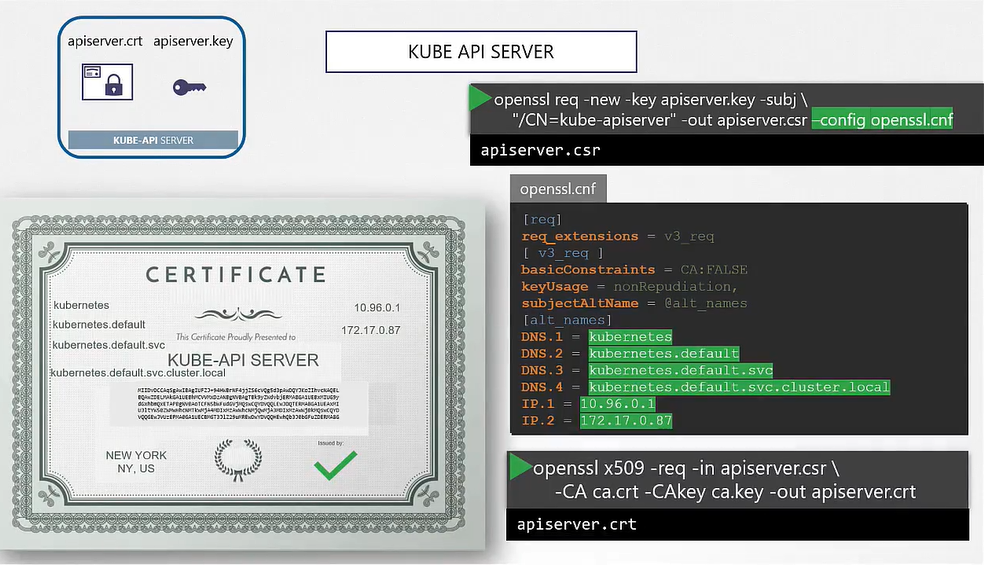

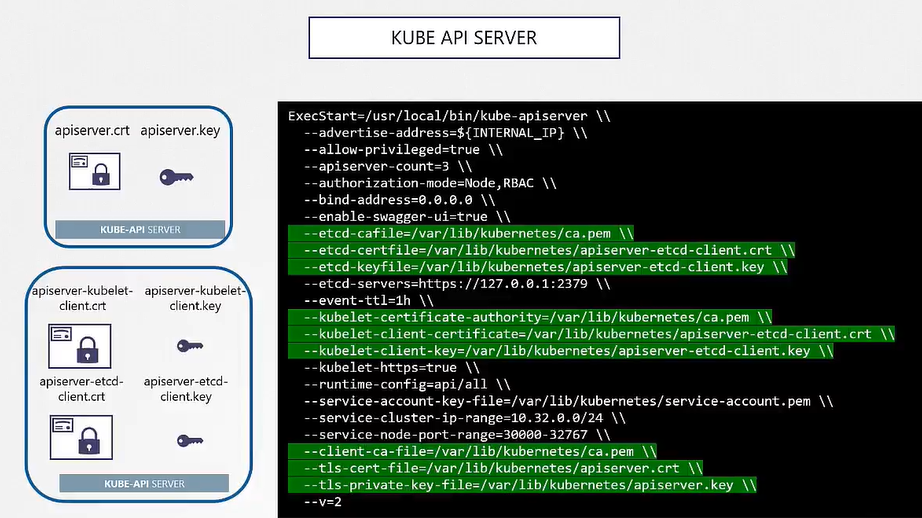

Kube-apiserver certificate

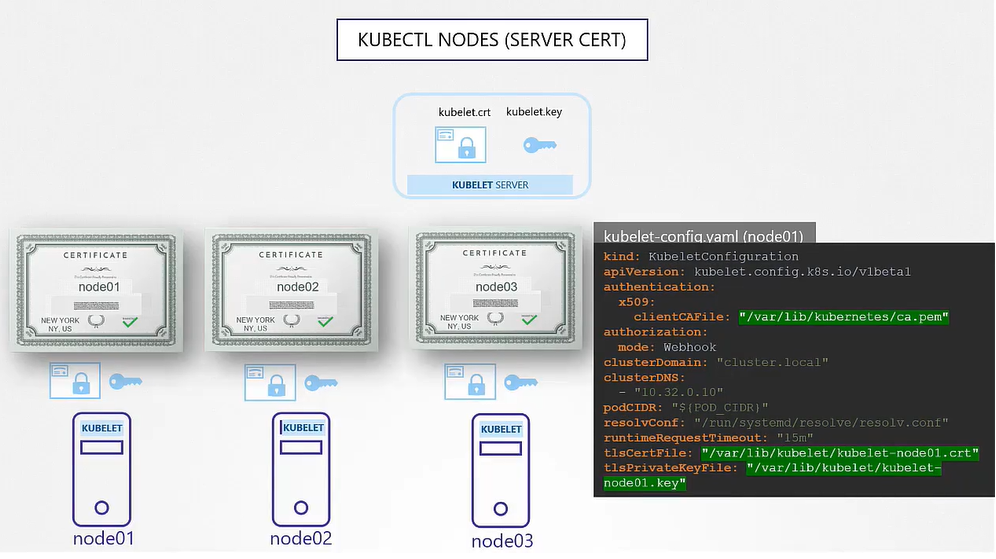

Kubectl Nodes (Server Cert)

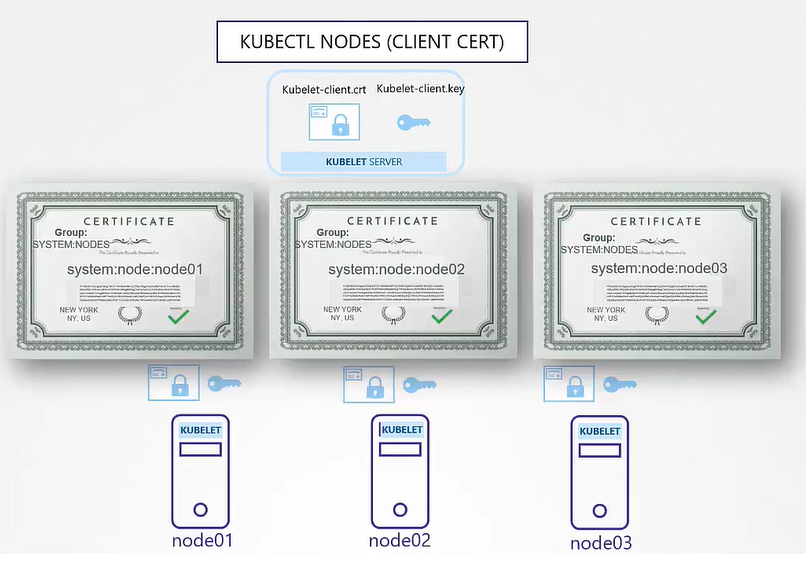

Kubectl Nodes (Client Cert)
