RBAC
- Take me to Video Tutorial

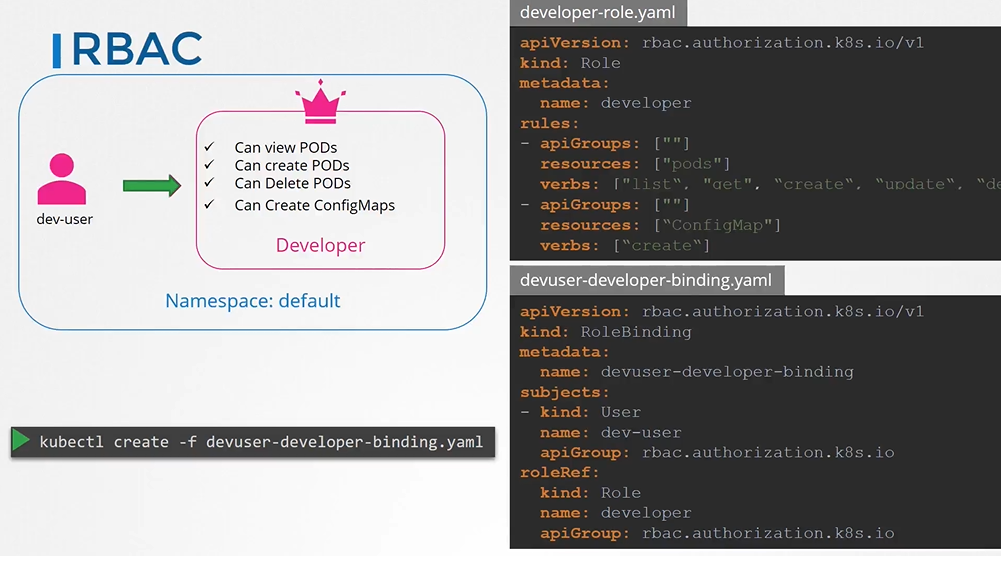

In this section, we will take a look at RBAC
How do we create a role?
- Each role has 3 sections
- apiGroups
- resources
- verbs
- create the role with kubectl command
$ kubectl create -f developer-role.yaml
The next step is to link the user to that role.
- For this we create another object called
RoleBinding. This role binding object links a user object to a role. - create the role binding using kubectl command
$ kubectl create -f devuser-developer-binding.yaml - Also note that the roles and role bindings fall under the scope of namespace.
apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: name: developer rules: - apiGroups: [""] # "" indicates the core API group resources: ["pods"] verbs: ["get", "list", "update", "delete", "create"] - apiGroups: [""] resources: ["ConfigMap"] verbs: ["create"]apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: devuser-developer-binding subjects: - kind: User name: dev-user # "name" is case sensitive apiGroup: rbac.authorization.k8s.io roleRef: kind: Role name: developer apiGroup: rbac.authorization.k8s.io/images/rbac1.PNG)

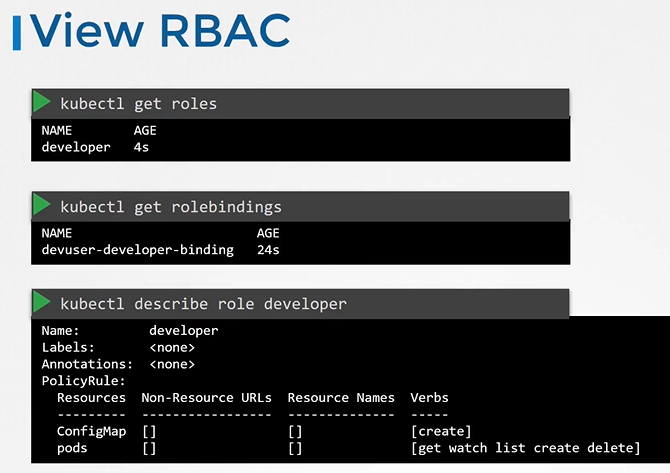

View RBAC
-
To list roles
$ kubectl get roles -
To list rolebindings
$ kubectl get rolebindings -
To describe role
$ kubectl describe role developer/images/rbac2.PNG)
-

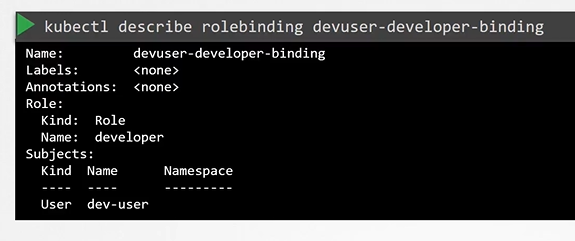

To describe rolebinding
$ kubectl describe rolebinding devuser-developer-binding/images/rbac3.PNG)
What if you being a user would like to see if you have access to a particular resource in the cluster.

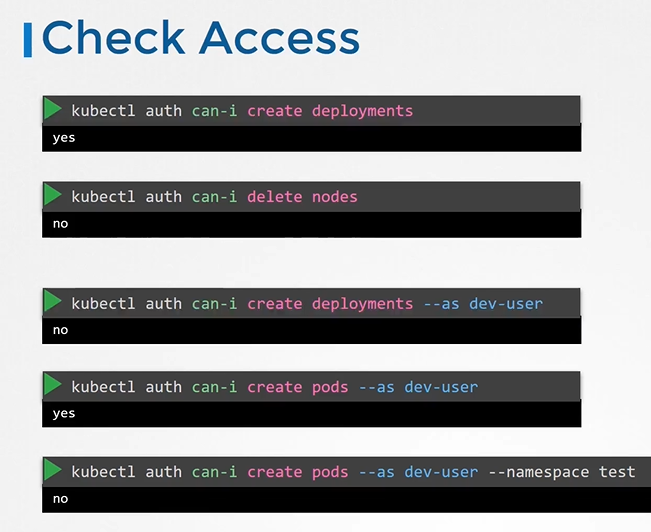

Check Access
-
You can use the kubectl auth command
$ kubectl auth can-i create deployments $ kubectl auth can-i delete nodes$ kubectl auth can-i create deployments --as dev-user $ kubectl auth can-i create pods --as dev-user$ kubectl auth can-i create pods --as dev-user --namespace test/images/rbac5.PNG)

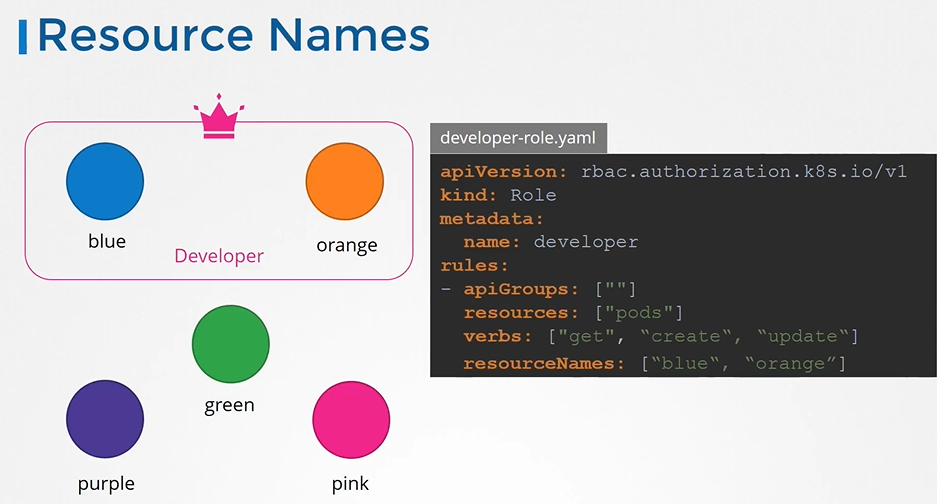

Resource Names
- Note on resource names we just saw how you can provide access to users for resources like pods within the namespace.
apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: name: developer rules: - apiGroups: [""] # "" indicates the core API group resources: ["pods"] verbs: ["get", "update", "create"] resourceNames: ["blue", "orange"]/images/rbac4.PNG)
